Most people searching for “2 inch water activated tape” or “3 inch water activated tape” are trying to match the tape to their cartons and are not sure which number matters. Two do: the width of the strip and the length on the roll. Width decides whether the seal holds; roll length decides how often the bench stops to reload.
This guide maps the common sizes to real cartons. If you also need to choose reinforced or non-reinforced, that is a separate decision covered in reinforced vs non-reinforced; for the product overview see the water activated tape guide.
Key points
- 70 to 72 mm (about 2.75 to 2.83 inches) is the standard carton-sealing width and the right default for most businesses.
- 48 mm (about 2 inches) suits small cartons, book-wraps and mailers. It is often narrower than people expect for general carton sealing.
- 76 mm (3 inches) is for large, heavy or double-wall cartons.
- 24 to 25 mm (1 inch) is a niche precision width, not a carton-sealing size.
- Roll length ranges from about 100 m to 150 m for carton widths. Longer rolls mean fewer changeovers on a busy bench.
Imperial vs metric: the confusion to clear first
Water activated tape is sold in both inch and millimetre labels, and they do not line up neatly:
| Common label | Actual width | What it is for |
|---|---|---|
| “1 inch” | ~24 to 25 mm | Precision and specialty work, not carton sealing |
| “2 inch” | ~48 to 50 mm | Small cartons, mailers, book-wraps, light parcels |
| “2.75 inch” / “70 mm” | 70 mm | The standard carton-sealing width |
| “2.83 inch” / “72 mm” | 72 mm | Same role as 70 mm, a different mill’s standard |
| “3 inch” | ~76 mm | Large, heavy or double-wall cartons |
The trap: someone reads “2 inch packing tape” as the normal size because that is true for plastic tape, orders 48 mm water activated tape, and finds it too narrow to seal a standard carton seam with enough overlap. For general carton sealing, start at 70 mm.
Width, mapped to cartons

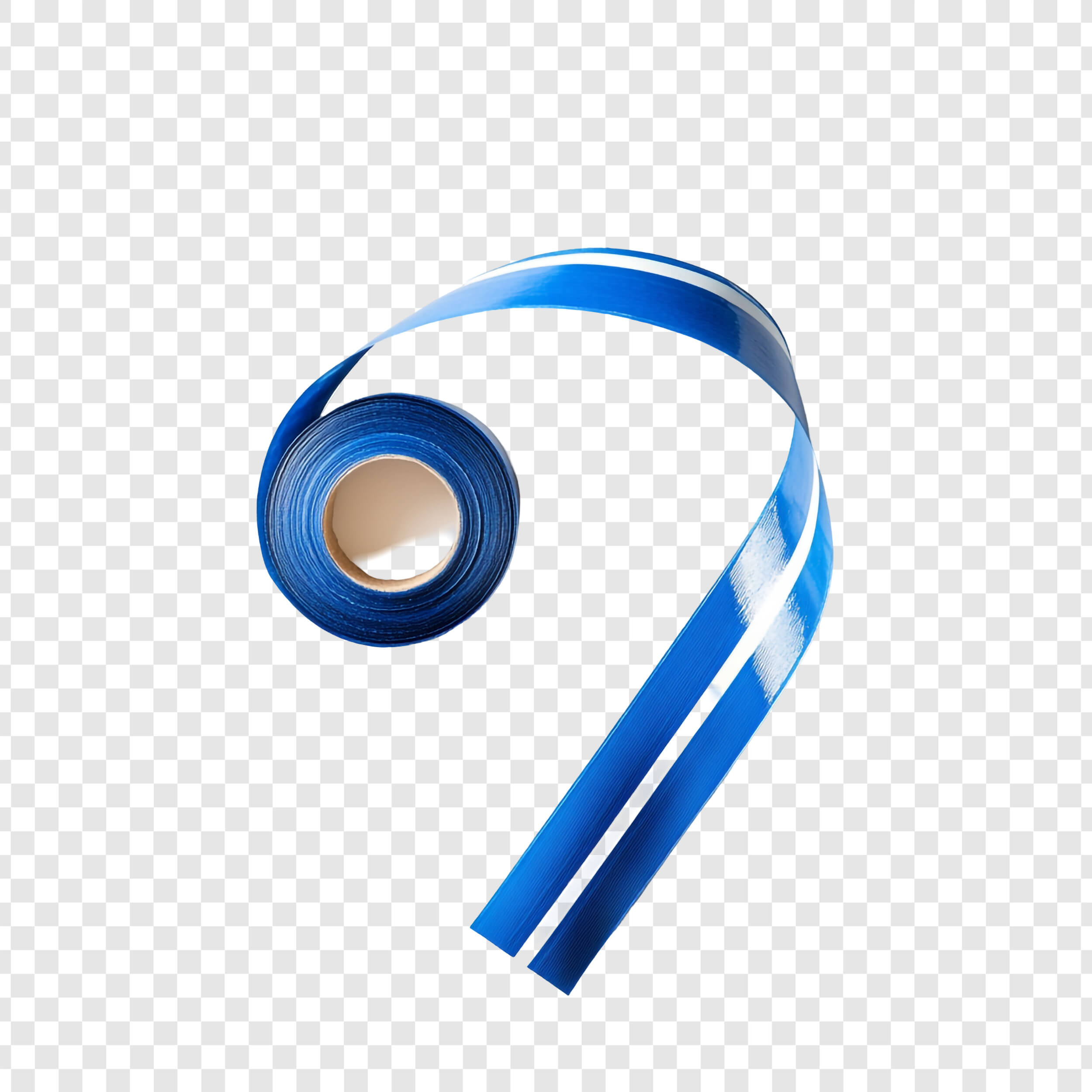

48 mm (2 inch)
- Small cartons up to roughly 200 to 250 mm on the sealed face.
- Mailers, book and media wraps, light e-commerce parcels.
- Where a slimmer seal looks neater on a small box.
- Not enough width to seal a large carton seam securely.
70 mm / 72 mm (2.75 to 2.83 inch) — the default
- Standard slotted cartons across the common size range.
- Single-wall and lighter double-wall boxes.
- The width most dispensers are set up for, and the width most stock cartons are designed around.
- If you buy one width for the whole operation, buy this.
76 mm (3 inch)
- Large cartons, heavy contents, double-wall board.
- Long or wide seams that need more tape bridging the join.
- Usually paired with a reinforced grade and an electric dispenser.
24 to 25 mm (1 inch)
- Specialty sealing, tabbing, and jobs where a wide strip would be wasteful.
- Not a general carton seal. If a search brought you here for “1 inch water activated tape” and you are sealing shipping cartons, you almost certainly want 70 mm.
Roll length and why it matters
Carton-width water activated tape typically comes on rolls from about 100 m to 150 m (roughly 330 to 500 feet). Narrower 48 mm tape often comes in longer rolls, up to around 200 m.
Roll length is a bench-productivity decision:
- Longer rolls mean fewer reloads per shift. On a bench sealing a few hundred cartons a day, each changeover is a minute or two of stopped work plus the risk of a rushed re-thread.
- Shorter rolls are easier to handle and store, and make sense for low volume or where several benches each run occasionally.
- Match the roll to the dispenser’s maximum roll diameter. An electric dispenser rated for a large roll will take the longer lengths; a small manual unit may not.
Work out your daily metre usage (cartons per day multiplied by roughly 0.4 to 0.7 m per carton for an H-pattern) and pick a roll length that gives you at least a full shift, ideally a full day, between changes.
Core size and dispenser fit
Water activated tape is wound on a 76 mm (3 inch) core as standard, which fits the spindle on almost all dispensers. Before ordering, confirm two things:
- The dispenser’s maximum tape width covers the width you want (a unit rated “up to 76 mm” handles all the carton sizes above).
- The dispenser’s maximum roll diameter takes the roll length you want.
Mixing widths on one bench means re-setting the dispenser’s tape guides each time, which is why most operations standardise on a single width.
“280 natural” and other numbers on the label
Some water activated tape is labelled with a number like 280 (“280 natural reinforced”). That is not a width. It refers to the tape’s total weight or paper weight in the manufacturer’s system, and it is a proxy for strength, similar to the 240 to 270 grade numbers used elsewhere. Higher number, heavier and stronger tape. Choose it the same way you choose a grade: by carton weight and transit, per the reinforced vs non-reinforced guide.
A simple way to choose
- Width: default to 70 mm. Go to 48 mm only if your cartons are consistently small or you ship mostly mailers. Go to 76 mm only for large, heavy or double-wall cartons.
- Grade: reinforced or non-reinforced, by carton weight and transit.
- Roll length: the longest your dispenser takes, so the bench runs at least a shift between changeovers.
- Test: order a single roll of your best guess, seal a batch of your real cartons with an H-pattern, and check overlap, hold and waste before committing to a pallet.
How Carewell Group fits: sized to your cartons, from one supplier
Carewell Group is an Australian packaging manufacturer and supplier. We design custom packaging around your product, add your branding and print, and supply the whole dispatch line from one place, so you are not matching tape, dispensers and cartons across three vendors.
- Water activated tape in every standard width (48 mm, 70 mm, 72 mm, 76 mm) and roll length, reinforced or non-reinforced, plain or custom-printed.
- Dispensers rated for the width and roll size you choose: see the dispenser guide.
- Cartons designed around the tape, so the seam length and board grade match the width you run.
- Custom design and engineering. If your product needs a specific carton, insert or seal, we build it to fit rather than making you adapt to stock sizes. From engineering to finished, ready-to-use packaging, your business gets a solution, not another task.
- Browse the water activated tape range or the reinforced water activated tape products, and the matching kraft paper mailers.
Carewell operates from NSW with warehousing in Smithfield, Matraville and Padstow, works with clients across grocery and retail, e-commerce, food and beverage, and industrial and manufacturing, and is certified to ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018, and an APCO member.
Not sure which width your cartons need? Request a quote and samples or call +61 (02) 8760 1491.
Frequently asked questions
What width of water activated tape do I need?
For standard carton sealing, 70 to 72 mm. Use 48 mm for small cartons and mailers, and 76 mm for large, heavy or double-wall cartons.
Is “2 inch” water activated tape the right size for shipping boxes?
Often not. 2 inch is about 48 mm, which is narrower than the 70 mm standard for carton sealing. It suits small boxes and mailers. For a normal shipping carton, choose 70 mm.
What does “280 natural” mean on water activated tape?
It is a strength grade, not a width. The number reflects the tape’s weight; higher means heavier and stronger. Choose it by carton weight and transit, the same way you choose reinforced vs non-reinforced.
How long is a roll of water activated tape?
Carton widths are usually 100 m to 150 m per roll. Narrower 48 mm tape can run to about 200 m. Pick the longest roll your dispenser accepts to reduce changeovers.
Does water activated tape fit a standard dispenser?
Yes. It is wound on a 76 mm core that fits almost all dispensers. Check the dispenser’s maximum tape width and roll diameter before ordering.
